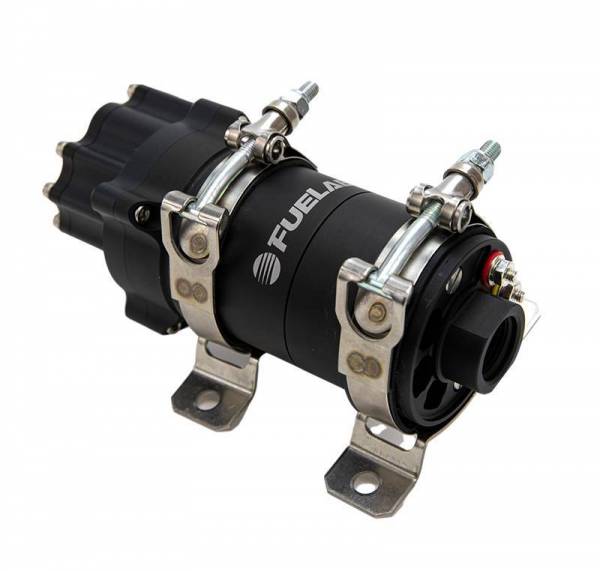

gear fuel pump PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump 6 GPM Spur Gear Matte Black FUELAB

gear fuel pump PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump 6 GPM Spur Gear Matte Black FUELAB5. 5 GPM at 45PSI, 100 PSI MAX Rated up to 3600+HP Power and efficiency at it's best! Pump Features Compatible with gasoline, diesel, ethanol and methanol High precision spur gear pumping mechanism 12AN Inlet and 10AN outlet Ports Backed by a limited lifetime warranty Motor Features Lightweight super efficient DC brushless motor reduces current draw Low mass rotor for high speed reaction to changes in speed and flow Powerful high flux Neodymium rare

5.5 GPM at 45PSI, 100 PSI MAX - Rated up to 3600+HP - Power and efficiency at it's best!

Pump Features

• Compatible with gasoline, diesel, ethanol and methanol
• High precision spur gear pumping mechanism
• -12AN Inlet and -10AN outlet Ports
• Backed by a limited lifetime warranty

Motor Features

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal Speed Controller for Variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty - motor speed can be adjusted to meet fuel demand

Construction Features

• Compact, powerful and lightweight - 3.5lbs, overall length 7.2 inch, diameter 3.31 inch
• Billet Aluminum construction with Anodize per MIL-A-8625, Type II
• High quality T-Style Mounting Brackets included
• Long Life multi-fuel compatible Fluorosilicone static seals

Available in Matte Black Only
